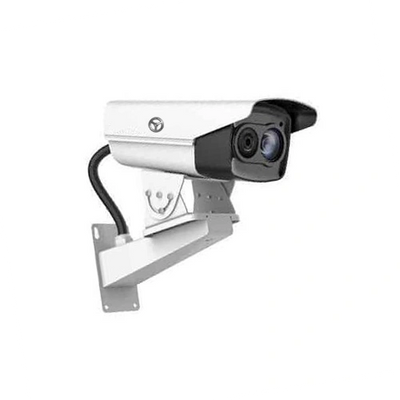

 temperature Screening Thermographic Turret camera is designed to detect elevated skin-surface temperature with high accuracy in real time. It can be used for preliminary temperature screening in office buildings, factories, stations, airports and other public places.

• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Max. Resolution160 × 120 (the resolution of output image is 320 × 240)
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 40 mK (25°C), F# = 1.1
• Lens (Focal Length)3.1 mm
• IFOV5.48 mrad
• Field of View50° × 37.2° (H × V)
• Min. Focusing Distance0.2 m
• ApertureF1.1

• Max. Image Resolution2688 × 1520
• Image Sensor1/2.7" Progressive Scan CMOS
• Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
• Shutter Speed1s to 1/100,000s
• Lens (Focal Length)4 mm
• Field of View84° × 44.8°(H × V)
• WDR120 dB
• Day & NightIR cut filter with auto switch

• Bi-spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel
• Picture in PictureCombines details of thermal and optical image PIP, overlay thermal image on optical image

• Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
• Temperature Range30 °C to +45 °C
• Temperature Accuracy± 0.5 °C (For accurate measurement, must be used under 10 °C to 35 °C at indoor and windless environment only)

• IR DistanceUp to 15 m
• IR Intensity and AngleAutomatically adjusted

• Main StreamVisible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720) Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240
• Sub-StreamVisible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 704 × 576, 352 × 288, 320 × 240
• Video CompressionH.265/H.264/MJPEG
• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 20
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

• Alarm Input1-ch inputs (0-5 VDC)
• Alarm Output1-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear level; impedance: 600 Ω
• Reset1 Reset Button
• Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
• SD Memory CardBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
• Application ProgrammingOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform
• ClientiVMS-4200, Hik-Connect
• Web BrowserIE9+, chrome31-44, Firefox 30-51, Safari 5.02+ (mac)

• Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chi
• Power12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3)
• Power Consumption12 VDC ± 20%: 0.5 A, max. 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
• Working Temperature/Humidity-40 °C to 60 °C 95% or less
• Protection LevelIP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection
• Dimension138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
• Weight940 g (2.07 lb)
